Drum filters are fully automatic pre-filters

The water enters the drumfilter at the inlet chamber and then flow into a drum-shaped sieve. The AquaForte drum filter is fitted with a 60-micron stainless steel screen, so waste particles that are 0.06mm in size or larger can’t go through the screen. These waste particles will deposit on the inner side of the drum, which will decrease the output flow of clean water through the drum. This will cause a change in water level inside and outside the drum.

The level switch will detect this change in water level and send a signal to the controller to activate the cleaning process. The device itself decides when the spray nozzles clean the screen depending on how dirty the screen is. The dirt is then rinsed into the drain. You decide whether the spray nozzles use tap water (min. pressure 2 bar, max. 4 bar) or clean pond water to rinse the screen. The filtered water flows through the sieve and is then taken to the main filter.

Aquaforte Drum Filter

  • Affordable drumfilter including a professional, software based controller

  • Injection moulded housing made of HDPE

  • The controller features various security options, like a slow start for the motor and a motor security

  • The controller offers more functions like a manual cleaning button and an automatic periodical cleaning process every hour

  • Only 1 cable from controller to the drumfilter. This will divide into 3 cables to the motor, float switch and cover switch.

  • Fitted with cover switch for extra safety

  • Extra low installing height of only 10 cm above the water level

  • Suited for pump fed and gravity fed applications

  • Maximum flow of 25 m³/h

  • 3 Inlets of Ø110mm and 2 outlets of Ø110mm and 50 Ømm connections in the top and the bottom of the inlet chamber and drum chamber

  • Compact size housing (l x w x h): 47 x 57 x 43 cm.

​

​

​

​

Aquaforte Drum Filter XL

The larger version of the popular AquaForte drumfilter

​

  • Made entirely of PP

  • Extra low installing height of only 10 cm above the water level

  • The controller features various security options, like a slow start for the motor and a motor security

  • The controller offers more functions like a manual cleaning button and an automatic periodical cleaning process every hour

  • Only one cable from controller to the drumfilter. This will divide into 3 cables to the motor, float switch and cover switch

  • Fitted with cover switch for extra safety

  • Suited for pump fed and gravity fed applications

  • Maximum flow 35 m³/h

  • 3 inlets of Ø 110mm and 2 outlets Ø 110mm

  • Size housing (L x W x H): 62 x 62 x 55 cm

  • 48 VDC Motor

  • Individual, exchangeable, screen elements of 75 micron

​

​

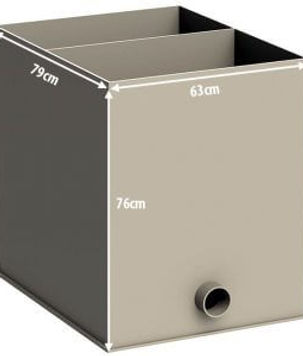

Additional: AquaForte Bio Chamber

The ideal complement for the AquaForte drumfilter.

  • The ideal complement for the AquaForte drumfilter.

  • Provided with 2 inlets Ø110mm that match the AquaForte HDPE drumfilters’ outlets

  • Available as an empty unit for custom filling or complete with special moving bed modules (with Eco Pond chips) and T-profile filter foam

  • Outlet: 90 mm

  • Max. flow: 25m³/h
